Geo Composite Drain

Overview

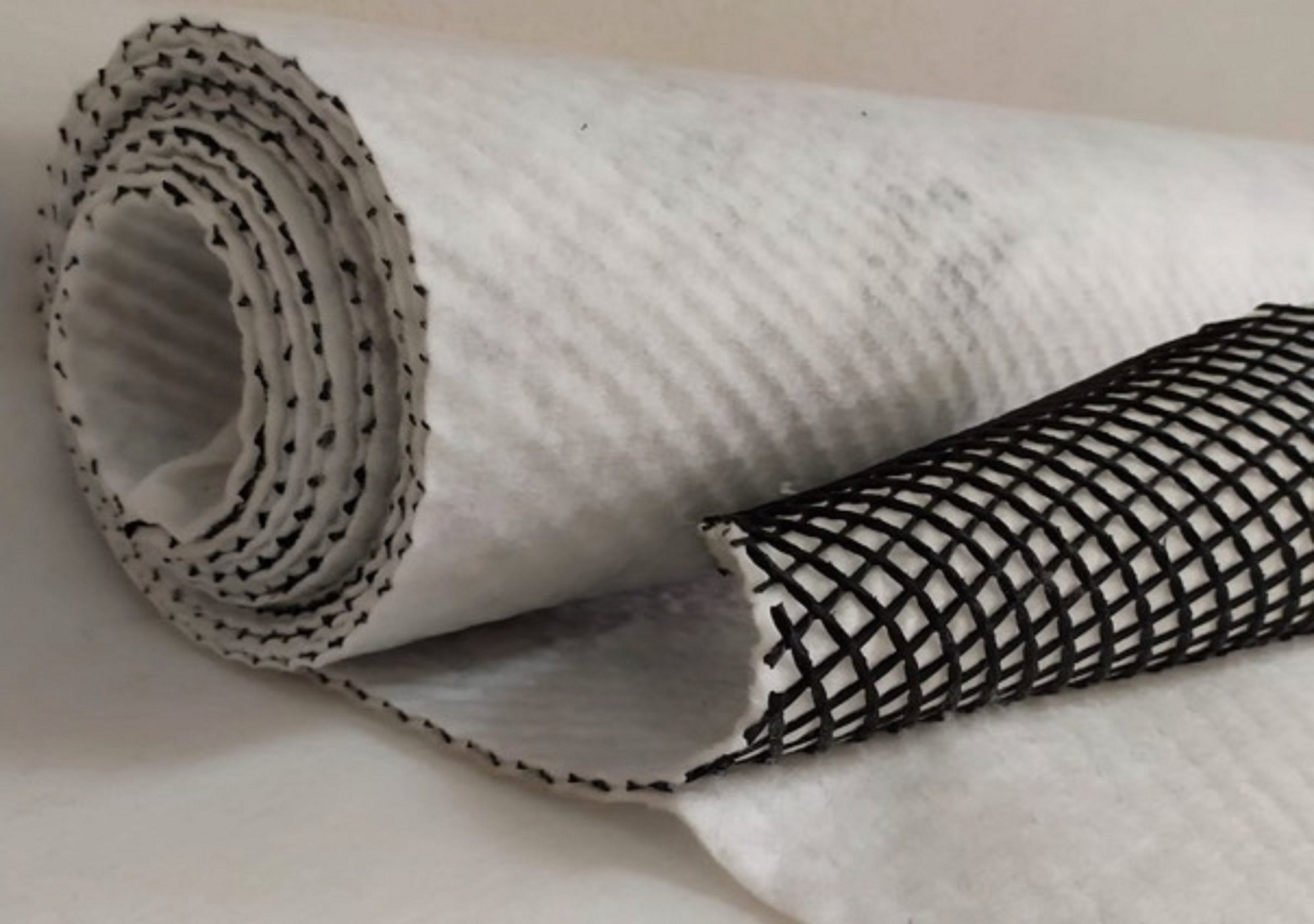

Hindustan Geo composit Drain is a bi-planer composite geonet for drainage.  Geo composit Drain is manufactured by continuous extrusion of two intersecting high density polyethylene (HDPE) strands to form a high profile, biaxial net structure and then bonded with a non woven geotextile on either side. The evenly spaced ribs keep flow channels open with a high capacity for water discharge.

Properties

Geo composit Drain is resistant to chemical and biological agents normally present in the soil and waste, it is stabilised with carbon black for resistance against UV degradation.

Application

SuperbDrain is supplied in rolls with protective wrapping which is removed prior to rolling out over the prepared surface. Adjacent rolls of Geo composit Drain are installed with a slight overlap at roll ends when fixed to walls hard surfaces.Geo composit Drain should be covered within 3 to 4 days of installation. Geo composit Drain can be used in a variety of vertical and horizontal applications including, behind RE Walls / retaining walls, bridges, cut and cover tunnels and under embankments and green spaces

Features

• • High crushing strength

  • Predictable flow performance

  • High flow capacity

  • Economical installation

  • Cost-effective replacement for primary natural resources

  • Excellent chemical resistance

  • Light Weight, easy to handle and easier installation

  • Lower material and installation cost

  • Reduces pore water pressure & prevents backfill saturation.

  • Reduces environmental impact by avoiding the use of natural-occurring minerals
